Switches 10AX 250V~ 2M


The design ensures implementation of all safety requirements prescribed by international standards.

Technical data

SAFETY

The design ensures implementation of all safety requirements prescribed by international standards.



SWITCHES

  • 10AX switch contacts.

  • Long life, in compliance with the requirements of the IEC standard. 40,000 operations (20,000 ONs and 20,000 OFFs).

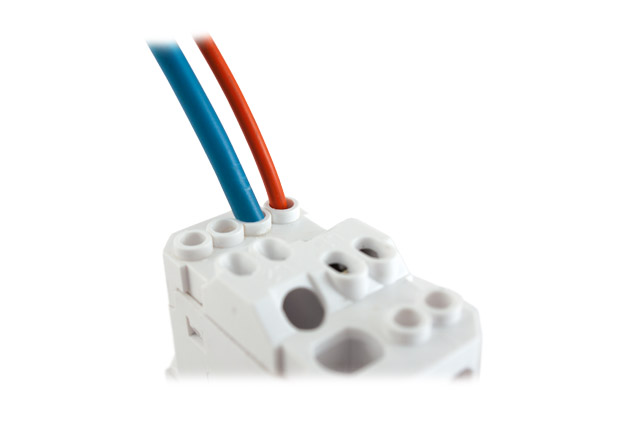

  • Screw-type terminals for safe acceptance of conductors with a cross-section of 1.5-2.5mm2. High barriers between the terminals provide safety against conductor short circuits.

  • The optimum wire length is engraved on the housing.

  • The product number, rated characteristics and the connection diagram are printed on the housing.

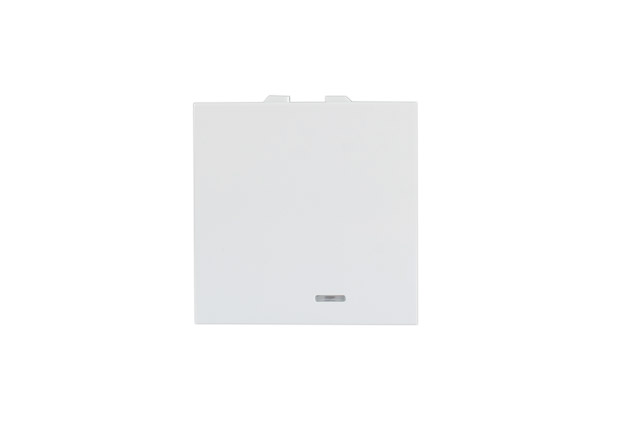

  • A switch can be illuminated by an indicator lamp or a location lamp depending on the purpose.

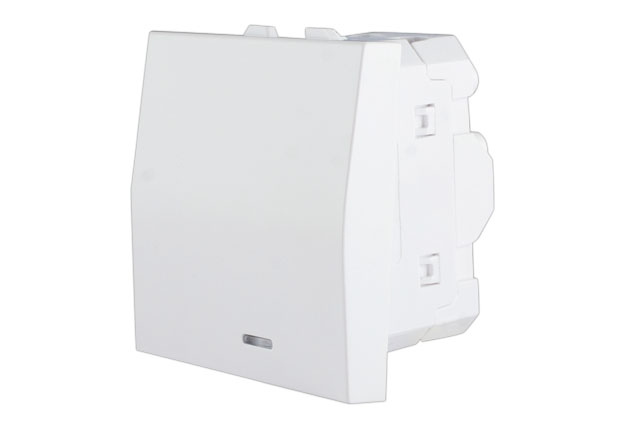

  • The indicator lamp is red and is used to indicate the on-state of the switch when the consumer is not in the field of view.

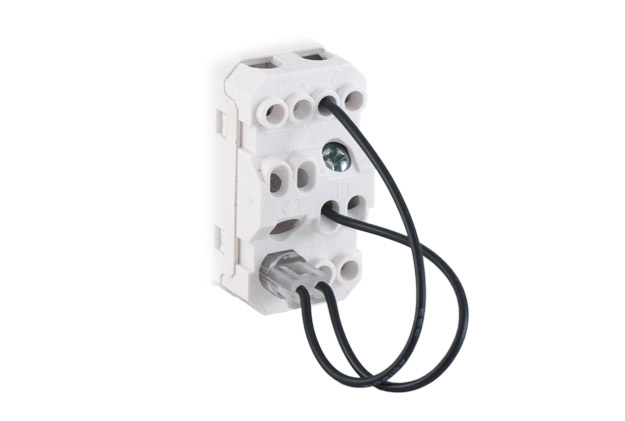

  • The switch with an indicator lamp has an embedded terminal for a neutral conductor. The location lamp is used for the night-time illumination of a switch; it is blue and illuminates the switch in its off-state.



Module installation

Interio switches size 2M make the whole system suitable for use when adapting existing buildings.




+

+

+
