Supporting frames


Supporting frames have holes for attachments on flush mounting boxes for masonry and hollow walls.

In addition, they have holes for non-standard attachments on any surface (panels and profiles where the use of boxes has not been envisaged or has proven impossible).

Supporting frames are available in black and white, and are applied depending on the color of modules and cover plates.

Technical data

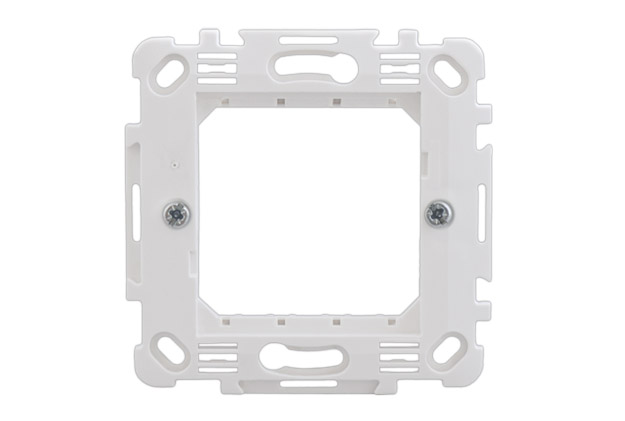

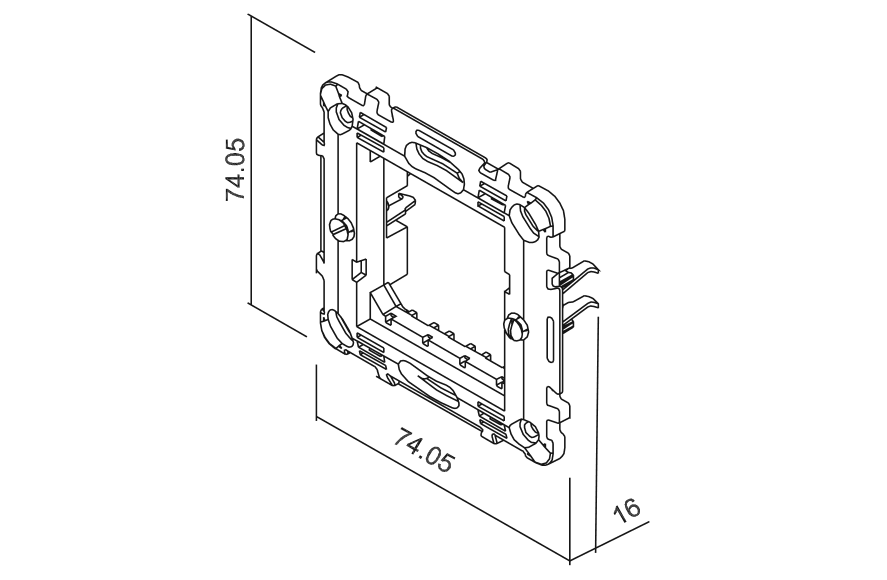

Supporting frame 2M

With claws
For mounting on boxes Ø60 with claws
In accordance with EN 60669-1

ART.701201
ART.701202

pack: 50

White Black

Technical data

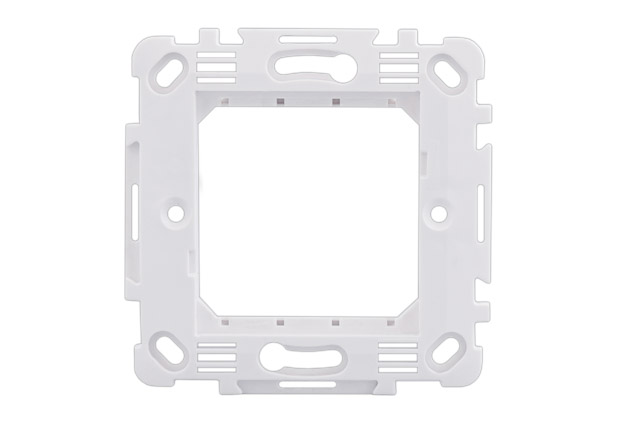

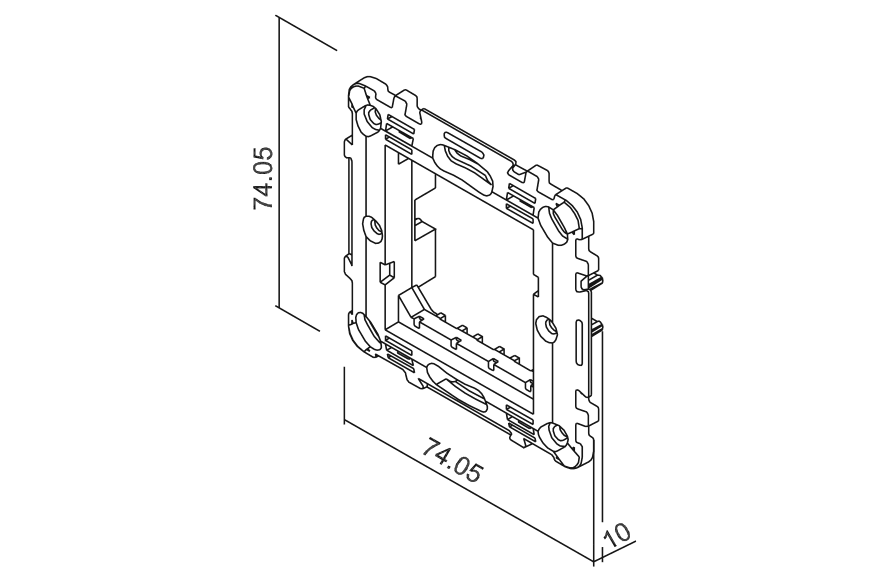

Supporting frame 2M for hollow walls

Without claws and screws
For mounting on boxes Ø60 for hollow walls
In accordance with EN 60669-1

ART.701203
ART.701204

pack: 50

White Black

Technical data

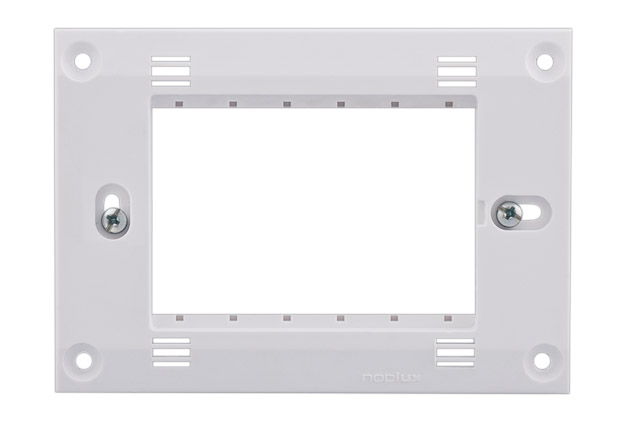

Supporting frame 3M

With screws
For mounting on rectangular boxes 3M
In accordance with EN 60669-1

ART.701301
ART.701302

pack: 50

White Black

Technical data

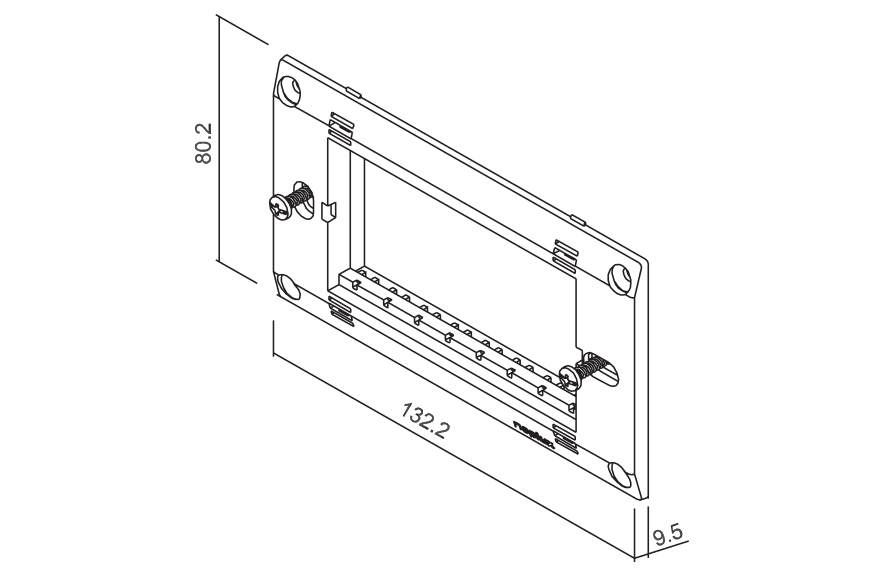

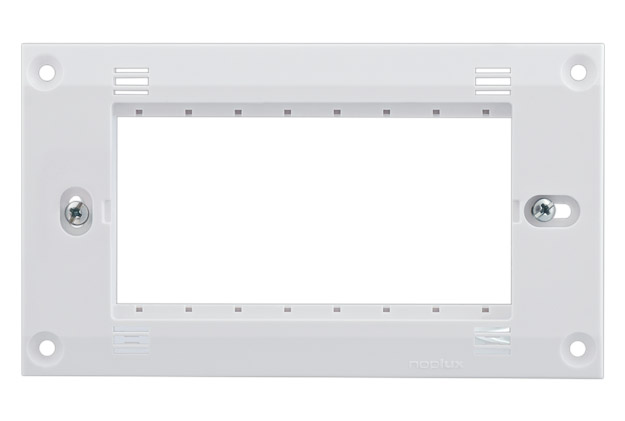

Supporting frame 4M

With screws
For mounting on rectangular boxes 4M
In accordance with EN 60669-1

ART.701401
ART.701402

pack: 50

White Black

Technical data

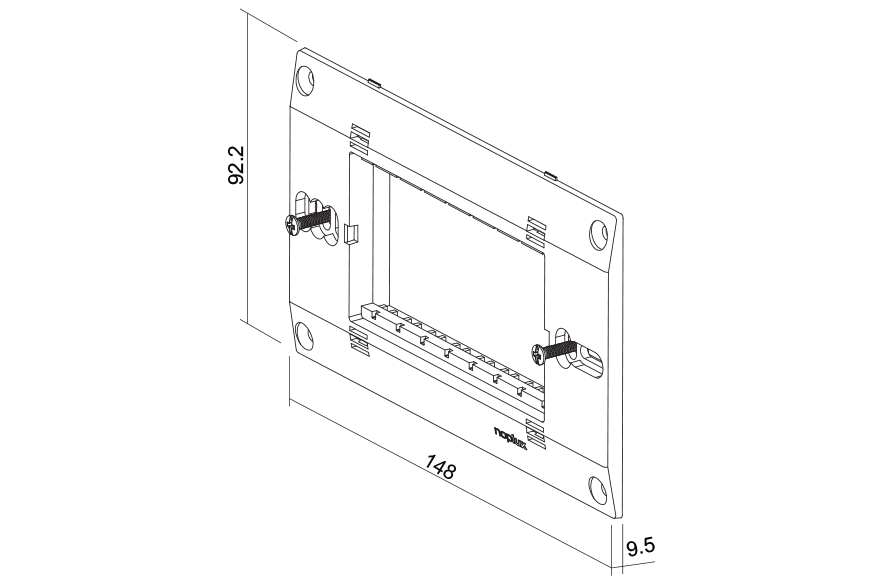

Supporting frame 4M universal

With screws
For mounting boxes with axial distances 108 mm, 120 mm, 130 mm and 135 mm
In accordance with EN 60669-1

ART.804101
ART.804102

pack: 50

White Black

Technical data

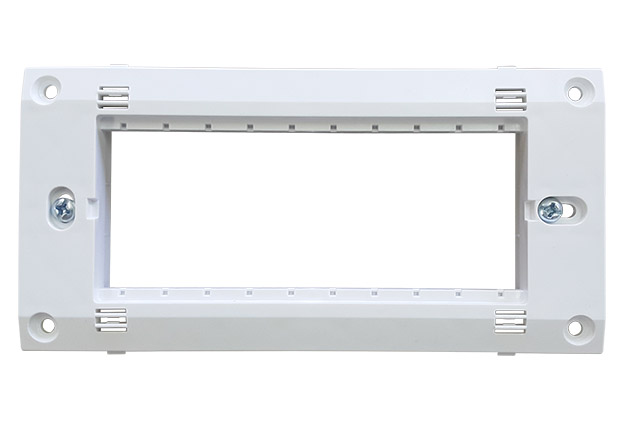

Supporting frame 5M

With screws
For mounting with mounting boxes 5M
In accordance with EN 60669-1

ART.701501
ART.701502

pack: 25

White Black

Technical data

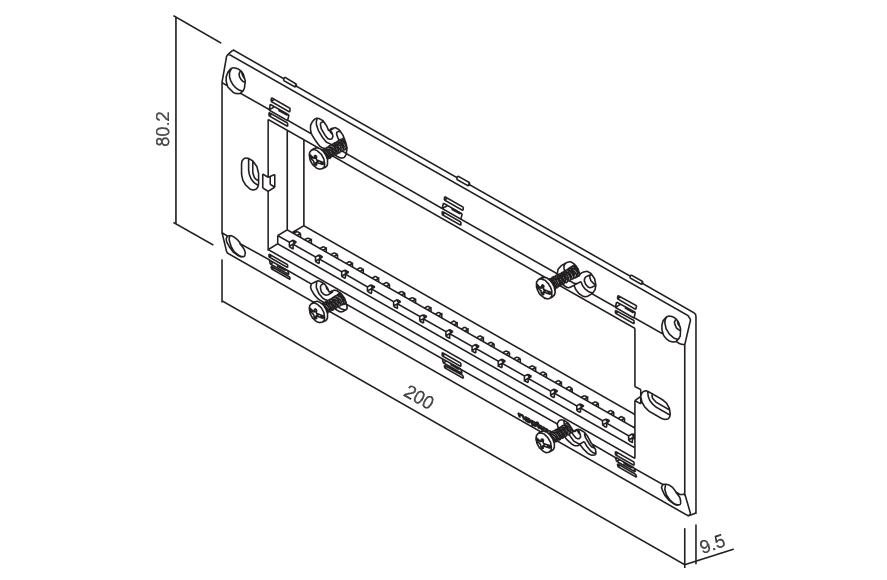

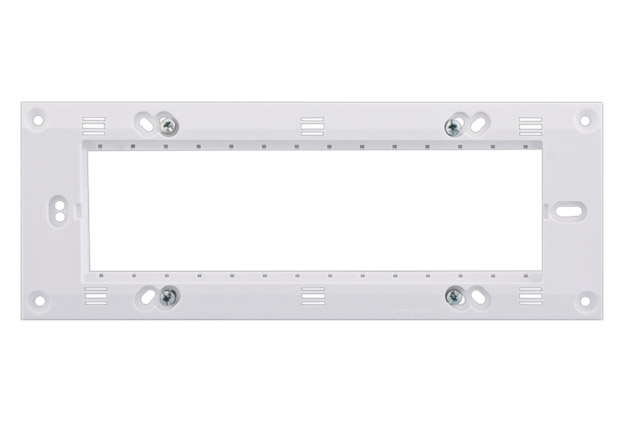

Supporting frame 7M

With screws
For mounting on rectangular boxes
In accordance with EN 60669-1

ART.701701
ART.701702

pack: 25

White Black

Technical data

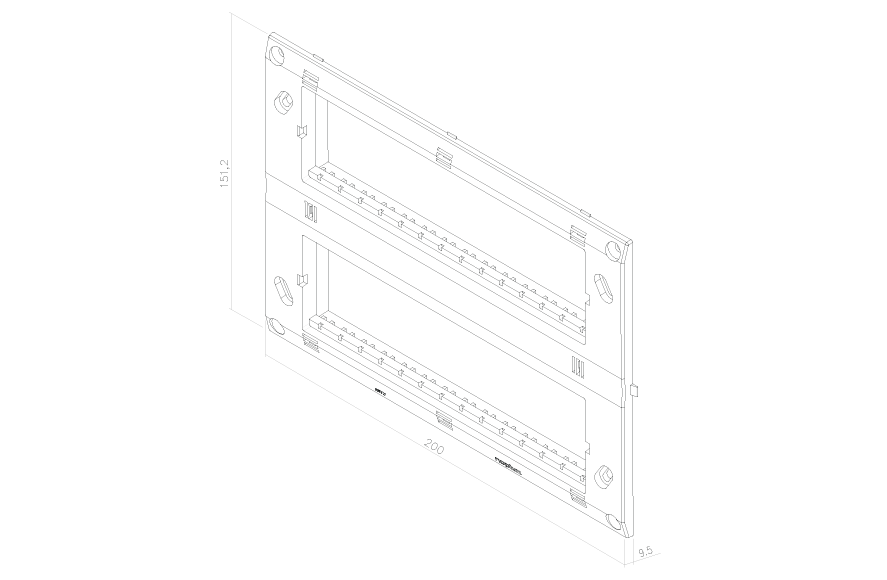

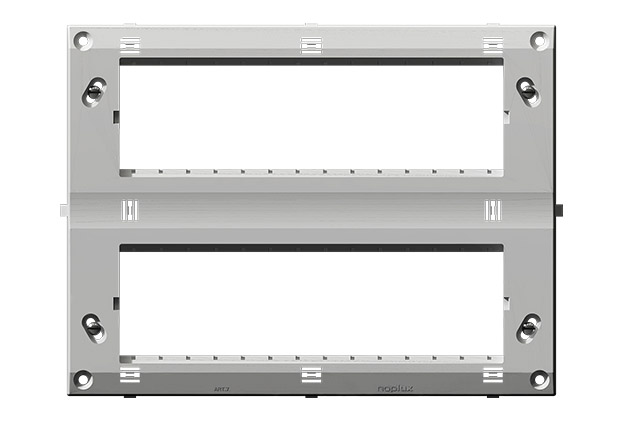

Supporting frame 2X7M

With screws
For mounting with mounting boxes 2x7M
In accordance with EN 60669-1

ART.701701D
ART.701702D

pack: 10

White Black
